High Carbon Steel Crimped Woven Wire Mesh , Mining Screen Mesh

Product Categories
Hebei Changte Wire Mesh Manufacturing Co.,Ltd.
Contact Now

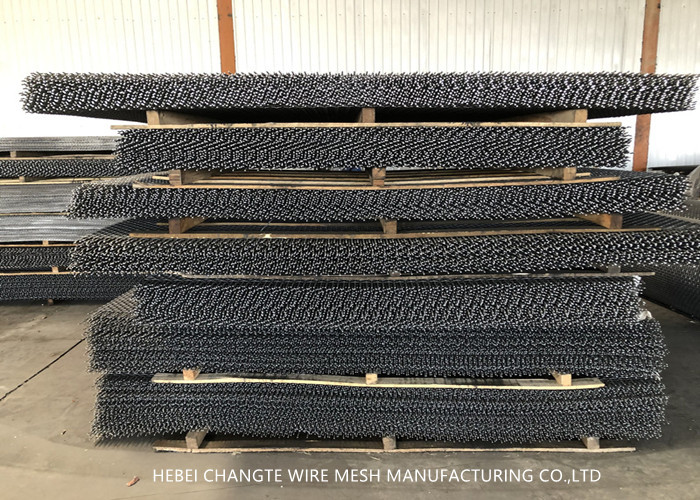

High Carbon Steel Crimped Woven Wire Mesh , Mining Screen Mesh

  • 1
  • 2
  • 3

Brand Name : CHANGTE

Model Number : AP-1

Certification : ISO 9001

Place of Origin : HEBEI CHINA

MOQ : 100 square meters

Price : $5-15 square meter

Payment Terms : L/C, T/T

Supply Ability : 2000 square meters/day

Delivery Time : 10-15 work days

Packaging Details : Wood pallet

Application : Filters, Screen, Woven Wire Mesh

Material : Stainless Steel Wire, 304, 316, 65Mn, copper

Type : Weave Wire Mesh, Crimped Wire Mesh, stainless steel screen mesh, Knitted Wire Mesh, Wire Cloth

Wire diameter : 0.5-8mm, 0.02-2mm, Requirement, 0.9mm, 0.02-5.00mm

Color : Silver, Black, grey, grey ( epoxy powder coated ), Customized

Length : 2.0m-2.4m, 0.5-5.8m, 30m per roll or as required, 1200mm, at request

Width : 0.5-2m, 0.8-2m and special width as your requested, 0.5m-3m or customized, 0.5-1.5m, 1200mm

Usage : vibrating screen, filter/acid resistance / high magnetic, oil, Mineral, Quarry

Surface : smooth, black powder coated/epoxy coated

Roll length : 30-50m wire mesh, 30-50m

Contact Now

High Carbon Steel Crimped Woven Wire Mesh / Mining Screen Mesh



Mining Wire Screen Mesh Material:

NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.

Weave Type:



Mining Wire Screen MeshPlain Weave:

also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Plain Dutch Weave:

Mining Wire Screen MeshTwill Weave:

In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

Mining Wire Screen MeshPlain Dutch Weave:

similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
Reverse Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Why choose us?
Professional & experienced company.
Professional design team& excellent sales team for your service;
Quick delivery& superior quality



SWG Wirediametermm mesh Meshsizemm Weightkg/m2
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9



High Carbon Steel Crimped Woven Wire Mesh , Mining Screen MeshHigh Carbon Steel Crimped Woven Wire Mesh , Mining Screen Mesh

High Carbon Steel Crimped Woven Wire Mesh , Mining Screen Mesh
